NAT / PAT

Posted on by Junior Taitt
What a horror!
Encountered a nasty one with Network Address Translation Overload, took me a while to figure this one out.

NAT Overload

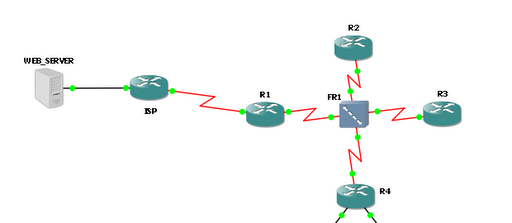

The Scenario:
WWW : 209.65.200.241/29
ISP : 209.65.200.254 /29
       : 209.65.200.226 /30
R1  : 209.65.200.225 /30
       : 10.1.1.1 /30
R2  : 10.1.1.2 /30
—————————————————————————————————————————-

As you can see, R1 has a public ip address to route on the internet and a private ip address to communicate with the internal network. As we all know RFC 1918 address aren’t permitted on the internet so two things needs to be done.

1) NAT/PAT
2) An access list to restrict RFC1918

Here’s the config on R1

        interface Serial1/0
         description : FRAME INTERFACE
         no ip address
         ip nat inside
         encapsulation frame-relay
         serial restart-delay 0
         no frame-relay inverse-arp
        !
        interface Serial1/0.12 point-to-point
         description : Link to R2
         ip address 10.1.1.1 255.255.255.252
         ip nat inside
         frame-relay interface-dlci 101
        !
        interface Serial1/1
         description : Link to ISP
         ip address 209.65.200.225 255.255.255.252
         ip access-group 192 out
         ip nat outside
         encapsulation ppp
         serial restart-delay 0
         no cdp enable
         ppp authentication chap
ip nat source list 10 interface Serial1/1 overload
!
access-list 10 permit 10.0.0.0 0.7.255.255 log
access-list 192 deny   ip 10.0.0.0 0.255.255.255 any log
access-list 192 deny   ip 172.16.0.0 0.15.255.255 any log
access-list 192 deny   ip 192.168.0.0 0.0.255.255 any log


 So the above config should work right? or so believed
access group blocks RFC1918 addresses out to the internet and NAT overload set for internal clients. It took me hours to figure out what was wrong, combed google, read the cisco NAT / PAT config guide over and over, checked my notes, etc. I started to think maybe this is a bug in the IOS or something.

After clearing my head and troubleshooting from the bottom up, i noticed there were no log hits on the access-list 10 which means traffic wasn’t being checked. This is after disabling the ip access-group 192 out on the serial interface to ISP

Turned on ICMP debug on ISP router and to my not-so-supprise i saw the private ip addresses, knociing at the ISP router’s door

So, what does NAT and ACCESSLISTS have in common?
Why would the router route the traffic and not include NAT and ACCESSLISTS in the equation?

Answer = our good old friend CEF (Cisco Express Forwarding)
CEF is brilliant for bypassing the route processor and forwarding frames at wirespeed via hardware

So i quickly jumped to my console and typed “no ip route-cache”

        interface Serial1/1
         description : Link to ISP
         ip address 209.65.200.225 255.255.255.252
         ip access-group 192 out
         ip nat enable
         no ip route-cache
         no ip route-cache cef
         encapsulation ppp
         serial restart-delay 0
         no cdp enable
         ppp authentication chap

And NAT in worked beautifully.
I also learned the old way of using

“ip nat inside source list ….”
“ip nat inside”
“ip nat outside”

can be replaced with

“ip nat enable”
“ip nat source list….”

https://learningnetwork.cisco.com/thread/26212

So there it is folks
