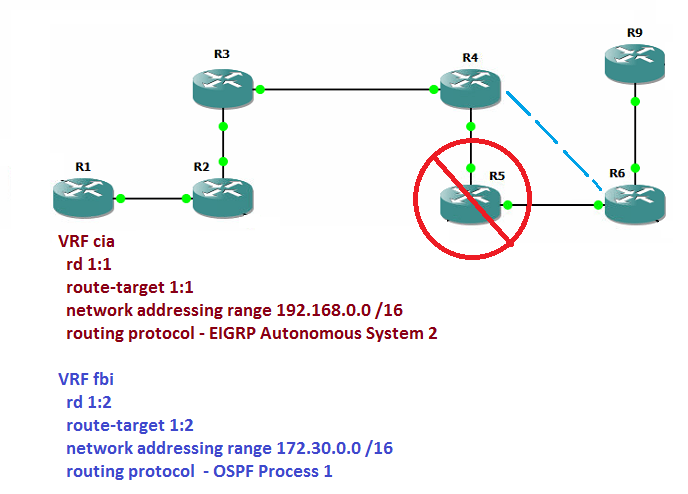

Hopefully the above diagram is clear enough. The topology from R1 u to R4 and R6 to R9 runs two VRFs
- CIA and FBI
- BGP runs between R6 and R9 only
- R5 does not take part in any VRF routing, there is a GRE tunnel between R4 and R6
- R6 does inter-VRF routing
- Fx/x.11 = CIA VRF
- Fx/x.12 = FBI VRF
So, Data from R1 travels along the path to R4, goes over an IPsec protected GRE tunnel to R6 which is then Inter-VRF routed.
R1#traceroute vrf cia 172.30.12.1
Type escape sequence to abort.
Tracing the route to 172.30.12.1
1 192.168.12.2 24 msec 48 msec 24 msec (R2)
2 192.168.23.3 100 msec 56 msec 28 msec (R3)
3 192.168.34.4 64 msec 48 msec 72 msec (R4)
4 192.168.46.6 112 msec 140 msec 164 msec (R6)
and here it does the U-Turn 🙂
5 172.30.46.4 184 msec 160 msec 152 msec (R4)
6 172.30.34.3 180 msec 180 msec 196 msec (R3)
7 172.30.23.2 208 msec 212 msec 180 msec (R2)
8 172.30.12.1 224 msec * 236 msec (R1)
Config here -> VRF LITE BLOG
